General Information

• Model identifier: DAD 4870 Levantar
• Manufacturer material number: 12934690
• EAN: 4002516966838
• Marketing class: Gold

Construction Type

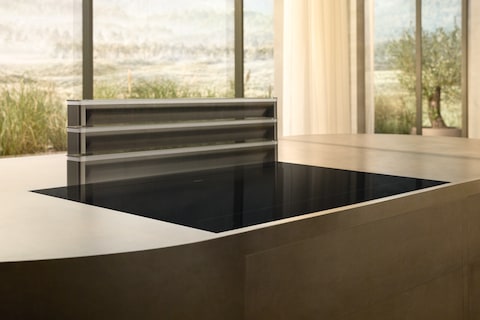

• Downdraft extractor

Design & Build

• Colour: Obsidian Black
• Edge extraction design
• Motorised, retractable downdraft system

Operating Modes

• Air guide: Convertible / retrofittable

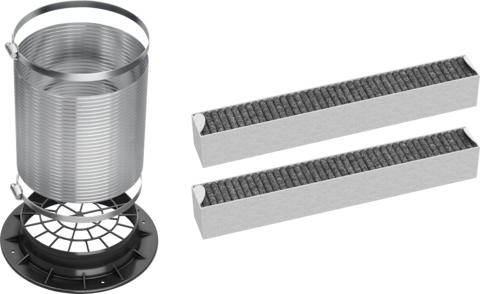

• Recirculation kit (optional): DUU 600 / DUP 150
• Active charcoal filters (optional): DKF 30-P / DKF 30-R

User Convenience

• Miele@home connectivity
• Con@ctivity automatic control
• Electronic touch controls (glass surface)
• 3 power levels + 2 booster levels
• Run-on time: 5 / 15 min
• Grease & charcoal filter indicators
• Motorised hood operation
• CleanCover easy-clean interior

Efficiency

• Energy efficiency class: A
• ECO DC motor
• PowerManagement system
• Annual energy consumption: 41.1 kWh
• Fluid dynamic efficiency: A
• Lighting efficiency: A
• Grease filtering efficiency: B

Filter System

• 2 × 10-layer stainless steel grease filters
• Dishwasher-safe filters

Lighting

• 1 × 12 W LED
• 400 lx light intensity
• 3500 K colour temperature
• Dimmable lighting

Fan & Performance (Extraction)

• Level 1: 205 m³/h
• Level 2: 350 m³/h
• Level 3: 450 m³/h
• Booster 1: 610 m³/h
• Booster 2: 655 m³/h

Noise Levels (Extraction)

• 43 / 55 / 62 dB (Levels 1–3)
• Booster: 69 / 71 dB

Performance (Recirculation)

• Level 1: 165 m³/h
• Level 2: 320 m³/h
• Level 3: 420 m³/h
• Booster 1: 525 m³/h
• Booster 2: 560 m³/h

Noise Levels (Recirculation)

• 49 / 63 / 69 dB (Levels 1–3)
• Booster: 74 / 75 dB

Safety

• Safety switch-off
• Single-ply safety glass (ESG)

Technical Data & Dimensions

• Canopy width: 916 mm
• Canopy height: 708 mm
• Canopy depth: 171 mm
• Overall height (extraction/recirculation): 1008 / 1288 mm
• Net weight: 34.0 kg

Cut-out Dimensions

• Surface-mounted: 815 × 106 mm
• Flush-fit (internal): 815 × 106 mm
• Flush-fit (external): 920 × 124 mm

Installation & Fit

• Minimum base unit width: 900 mm
• Glass frame width: 916 mm
• Floor or unit-base installation
• Flush-fit or surface-mounted installation
• Joint installation with hob in one cut-out

Electrical Data

• Voltage: 230 V
• Frequency: 50 Hz
• Fuse rating: 10 A
• Total load: 0.25 kW
• Cable length: 1.3 m
• Standard plug fitted

Ventilation & Compatibility

• Bottom exhaust duct
• Exhaust duct diameter: 150 mm
• Compatible hobs: KM 8482 FL / KM 8484 FL / KM 8585 FL
